Product Features

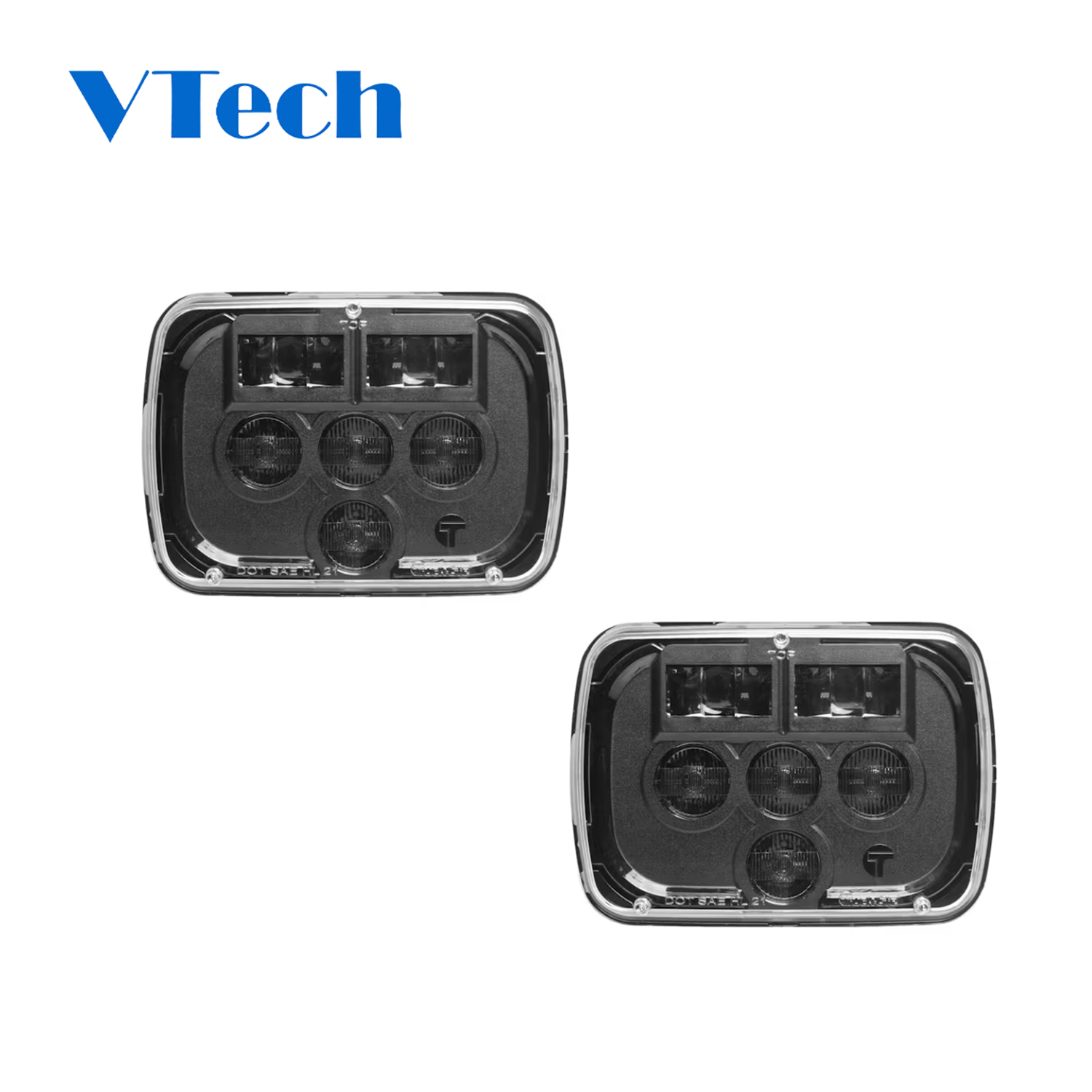

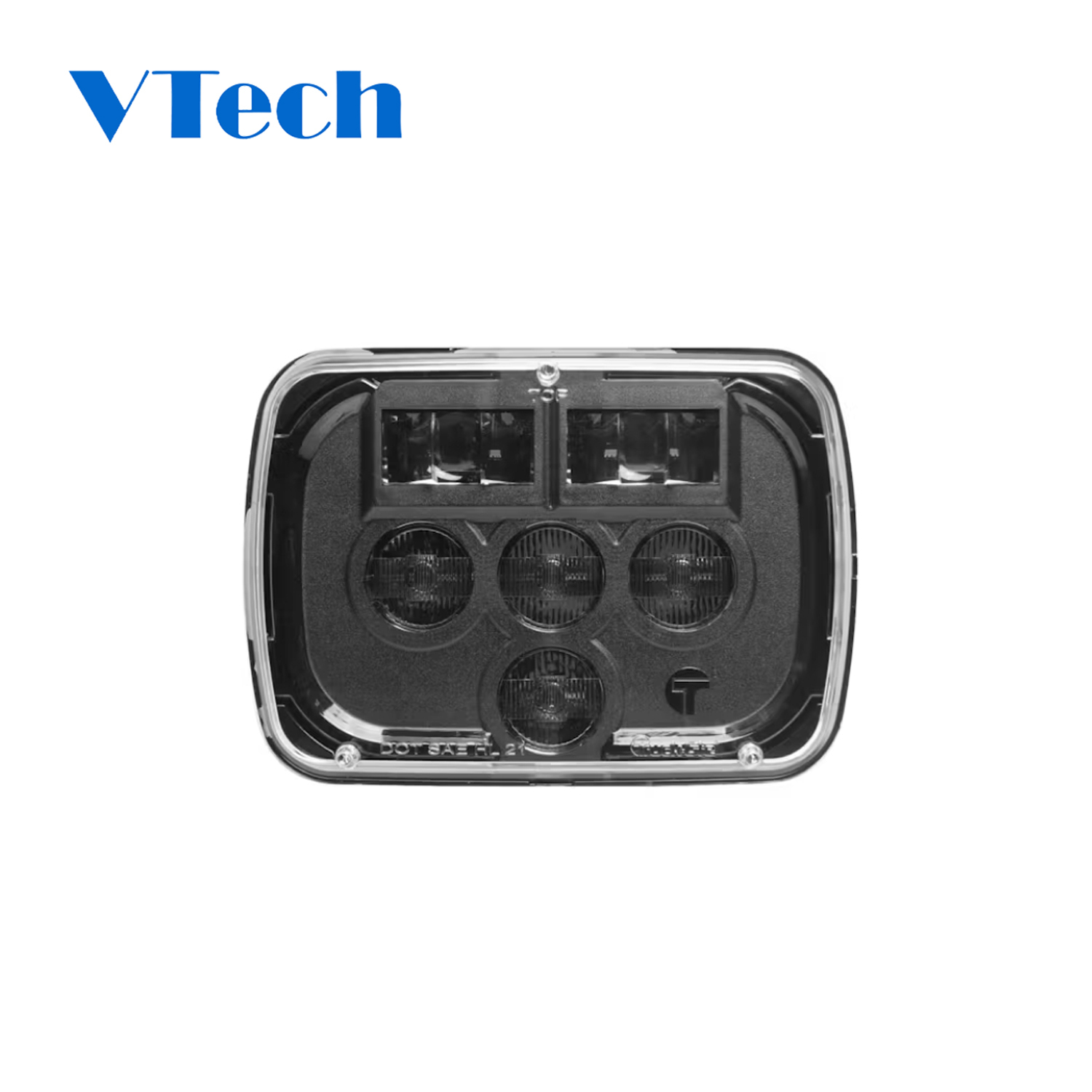

- Heavy Duty Rectangular Clear LED Headlight
- Direct Replacement For 6052, 6053, H6054 and HD6054 Headlight Designs
- Aiming Type: Mechanical
- Beam Pattern: High-Low
- Beam Type: Low-High
- Current Major: 2.00A-3.70A At 12.8V, 1.05A-1.90A At 25.8V
- Current Minor: 1.38A-1.98A At 12.8V, 0.70A-1.00A At 25.8V
- Housing Material: Die-Cast Aluminum
- Lens Shape: Rectangular
- Lighting Technology: LED
- Lamp Connection: Hardwired
- Lens Color: Clear
- Lens Height: 1.15"
- Lens Material: Polycarbonate
- Lens Width: 5.591"
- Diode Count: 6
- Wire Count: 3
- Plug Side One: Hardwired
- Plug Side Two: H4 - 3 Blade Connector
- Sealed Bulb
- Wire Gauge: 16
- Sold Individually
Installation
- Easy Installation，Plug-and-Play Installation
Upgraded Driving Safety
• Engineered to maximize visibility in all conditions, these headlights reduce eye strain and enhance reaction time:
• Superior Performance: Optimal illumination in darkness, heavy rain, fog, or dust storms.
• Safety First: Improve on-road awareness for you and other drivers, minimizing accident risks.
Important Note
Professional Installation Recommended: This product does not include step-by-step installation guides. For best results, we advise having the headlights installed by a certified truck mechanic.
